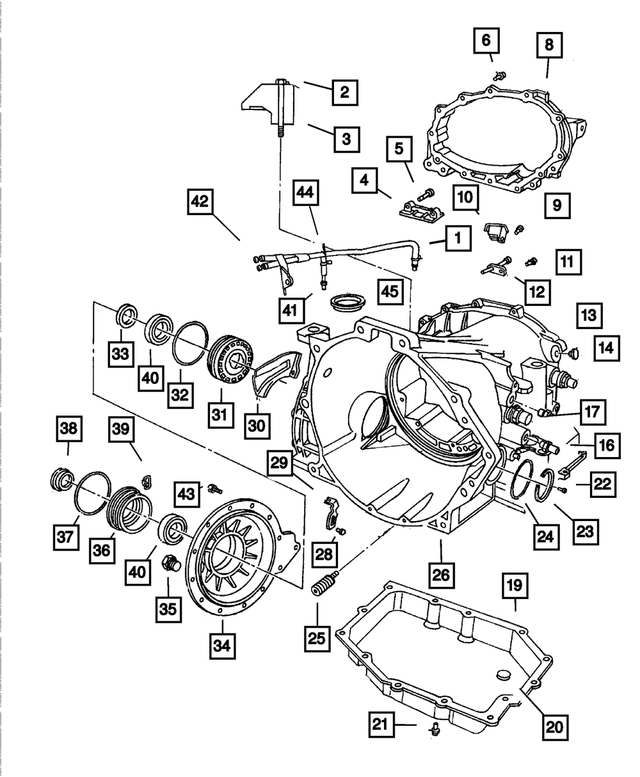

Case and Extension for 2001 Chrysler 300M

Diagram 1 1. Trans Speed Sensor O Ring Diagram 2 2. Hex Head Screw And Washer
Case and Extension for 2001 Chrysler 300M #0
1
10
12
13
14
16
17
19
2
20
21
22
23
24
25
26
28
29
3
30
31
32
33
34
35
36
37
38
39
4
40
40
41
42
43
44
45
5
6
8
9
No.
Part # / Description / Price
Price
N/A
6501658AB - Automatic Transaxle 4 Speed: Trans Speed Sensor O Ring for Mopar Image
Trans Speed Sensor O Ring
6501658AB
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Stop Fluid Speed Sensor To Transmission. Fwd. 3.05 thk. 24mm. 3.05 Thick. Output sensor.
Not For Sale
Not For Sale
N/A
4531412 - Automatic Transaxle 4 Speed: Dowel Bushing for Mopar Image
Dowel Bushing
4531412
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Valve Body to Case.
Not For Sale
Not For Sale
N/A
6501657AB - Automatic Transaxle 4 Speed: Trans Speed Sensor O Ring for Mopar Image
Trans Speed Sensor O Ring
6501657AB
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Fwd. 22mm. Output Speed Sensor. Input speed sensor.
Not For Sale
Not For Sale
1
4765013 - Automatic Transaxle 4 Speed: Transmission Vent Hose for Mopar Image
Transmission Vent Hose
4765013
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
2
6502894 - Automatic Transaxle 4 Speed: Bolt for Mopar Image
Bolt
6502894
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
3
4567150 - Automatic Transaxle 4 Speed: Transmission Solenoid Connector Retainer for Mopar Image
Transmission Solenoid Connector Retainer
4567150
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
8
4659477 - Automatic Transaxle 4 Speed: Transaxle Rear Cover for Mopar Image
Trans-Axle Rear Cover
04659477
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Chain / Gear.
View Details
View Details
9
6501819 - Automatic Transaxle 4 Speed: Pan Head Screw And Washer for Mopar Image
Pan Head Screw And Washer
6501819
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: M5x0.8x11.00. Fwd.
Not For Sale
Not For Sale
14
4800879 - Automatic Transaxle 4 Speed: Transmission Output Speed Sensor for Mopar Image
Transmission Output Speed Sensor
4800879
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Input and Output.
Not For Sale
Not For Sale
16
6033879 - Automatic Transaxle 4 Speed: Inverted Flare Nut for Mopar Image
Inverted Flare Nut
6033879
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: .62-18.
MSRP $15.85
$10.81
MSRP $15.85
$10.81
17
4800878 - Automatic Transaxle 4 Speed: Transmission Input Speed Sensor for Mopar Image
Transmission Input Speed Sensor
4800878
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Fwd.
Not For Sale
Not For Sale
19
4539762 - Automatic Transaxle 4 Speed: Transmission Oil Pan for Mopar Image
Transmission Oil Pan
4539762
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
20
68207789AA - Automatic Transaxle 4 Speed: Transmission Magnet for Mopar Image
Transmission Magnet
68207789AA
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Can be used with Oil Pans 52852912AA and 52852912AB. Use with Oil Pans 52852912AA or 52852912AB. After 1/27/2003.
Not For Sale
Not For Sale
21
6501474 - Automatic Transaxle 4 Speed: Hex Head Bolt for Mopar Image
Hex Head Bolt
6501474
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: M8x1.25x16. Fwd. Exhaust Manifold Bracket To Manifold. Pressure Plate to Flywheel. Engine Cover Bracket. Enginne Cover Bracket. Transmission Oil Pan to Case.
Not For Sale
Not For Sale
22
6036053AA - Automatic Transaxle 4 Speed: Pressure Check Plug for Mopar Image
Pressure Check Plug
06036053AA
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Fwd.
Not For Sale
Not For Sale
23
6502482 - Automatic Transaxle 4 Speed: Snap Ring for Mopar Image
Snap Ring
6502482
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Stub Shaft Ball Bearing, 2.634`` O.D., .078`` Thk. Stub with Ball Bering.
View Details
View Details
25
4659946AB - Automatic Transaxle 4 Speed: Cooler Bypass Valve for Mopar Image
Cooler Bypass Valve
4659946AB
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Not For Sale
Not For Sale
26
4883525AA - Automatic Transaxle 4 Speed: Transaxle Case for Mopar Image
Trans-Axle Case
4883525AA
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
33
4539796 - Automatic Transaxle 4 Speed: Differential Case Seal for Mopar Image
Differential Case Seal
4539796
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
34
4567036 - Automatic Transaxle 4 Speed: Transaxle Differential Cover for Mopar Image
Trans-Axle Differential Cover
04567036
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
36
4539776 - Automatic Transaxle 4 Speed: Differential Bearing Adjuster for Mopar Image
Differential Bearing Adjuster
4539776
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
37
6502452 - Automatic Transaxle 4 Speed: Differential Adjuster -outer O Ring for Mopar Image
Differential Adjuster -Outer O Ring
6502452
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Atx.
View Details
View Details
38
4539891 - Automatic Transaxle 4 Speed: Differential Case Seal for Mopar Image
Differential Case Seal
4539891
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
View Details
View Details
40
3723569 - Automatic Transaxle 4 Speed: Differential Side Bearing Cup for Mopar Image
Differential Side Cup
3723569
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Not For Sale
Not For Sale
41
4531202 - Automatic Transaxle 4 Speed: Oil Cooler Hose Connector for Mopar Image
Oil Cooler Hose Connector
4531202
Mopar Mopar
Notes: Engines: 2.7L V6 24V W/ACTIVE INTAKE ENGINE. 2.7L V6 DOHC 24 VALVE MPI ENGINE. 3.2L V6 SOHC 24 VALVE MPI ENGINE. 3.5L V6 HIGH OUTPUT 24V MPI ENGINE. 3.5L V6 SOHC 24V ENGINE. Transmissions: 4-SPEED AUTOMATIC TRANSMISSION.
Description: Trans Vent Hose.
View Details
View Details
