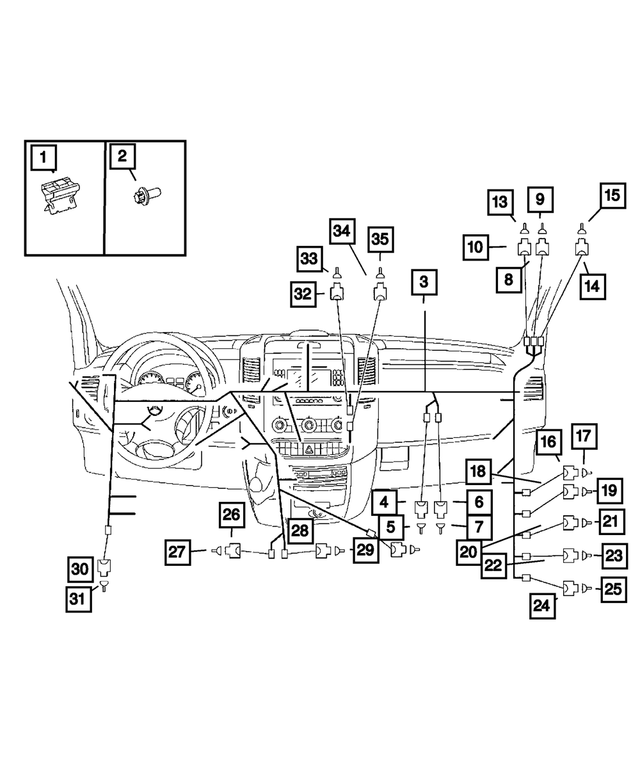

Wiring-Instrument Panel for 2008 Dodge Sprinter 3500
No.
Part # / Description / Price
Price
N/A
Connector
Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cover For Callout [# 10]. [S-98] Cover.
N/A
1
Bracket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [13x18 mm]. Harness To Side Member. Mounting Wiring Harness to Transmission Oil Lines 13x18MM.
2
Hex Flange Head Bolt Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Not For Sale
Not For Sale
3
Instrument Panel Wiring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: See Note.
4
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [2 Pin . X28/46].
5
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [x28/46].
6
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [2 Pin. X28/46].
7
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [x28/46].
8
Connector, Right, Rear Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cockpit Roof Connector [6 Pin. X18 / 23]. 68011247aa. [6 pin. X8/21].
9
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [1.0 - 2.5 mm]. [1.0 - 2.5 mm2: x18/23]. N28/1]. Slk 2.8. X 18/49].
10
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [28 - Pin / S98]. Cockpit Connector Roof [28 Pin. X18/51]. Cockpit Interior Plug Connector [28 Pin MQS, X18/56]. Interior Roof Connector [28 Pin. Mqs, x18/52]. [28-Pin/S-98].
14
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: 2 Way Female. Cockpit Connector Roof [2 Pin. X85/22]. Outlet. Plug Socket [2-PIN].
15
Female Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X85/22]. E46/1, e46/2, e46/3]. [0.5 - 1.0 mm2]. Outlet.
16
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Cockpit Interior Plug Connector [6 Pin X169/7]. 6 Way. [6 Pin].
18
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X15/51]. [28 Pin. x18/56]. [28 pin x18/52 s]. X18/51 b].
20
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [18 Pin;X15/55].
22
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X18/60]. Door Separation Point [10-PIN;X35/2].
24
Connector, Left, Rear Door Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [4 Pin. X18/64]. X8/23].
25
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X18/53]. X18/64]. [1.0 -2.5 mm2. X8/21. X8/23]. [1.5 - 2.5 mm2 slk 2.8, x18 / 23 s].
26
Wiring Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X2/5]. [4 Pin. X2/7].
27
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [0.5 - 1.0 mm2. X18/53]. X2/5]. X2/7]. X8/21].
30
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X53/8]. Roof Air [1Pin. X53/9]. X4/49]. [1 pin;r22/2] with [nhw and gbg].
31
Terminal Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: [x4/49]. [x53/8]. [x53/9].
32
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Back Up Aid [6 Pin. X170]. Connector, Backup Camera. [6Pin. X169]. [6 Pin / N10].
34
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Back Up Aid [6 Pin. X170]. Connector, Backup Camera [6 Pin. X169].
No.
Part # / Description / Price
Price
N/A
Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: B10/6]. H3/4]. Mqs, x62/72]. N33/2]. S11]. [1.6-1.9 mm2/a53/a54]. [1.4 - 1.9 mm]. [1.6 - 1.9mm2 / a53/a54]. [1.6 - 1.9 mm2 / x18/52 s].
N/A
Gasket Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: Connector Gasket [MM;Y76/1 - Y76/6. Y110/1 - y110/6]. N33/2]. X174/1. X174/2]. Y58/1]. [0.5-1.0 mm. X62/72]. [0.5 - 1.0 mm2]. Pressure Valve[. 05-1.0;MM2;Y74].

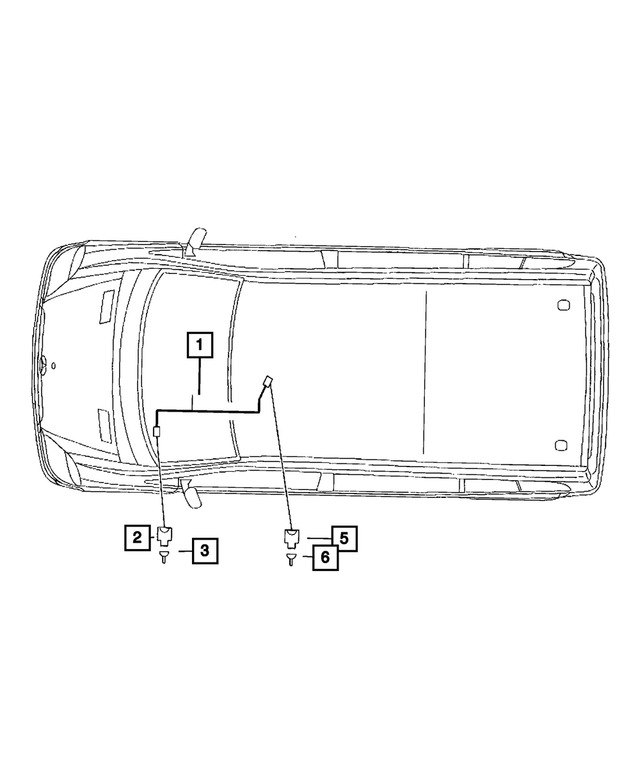

1
Wiring Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: With [lm2 or lm3].
2
Connector Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X62/72]. B28]. Oil level and pressure sensor. [3 Pin]. Roof Refrigerant Pressure Sensor. [8-Pin/S-98].
5
Insulator Mopar
Mopar Notes: Engines: 3.0L V6 TURBO DIESEL ENGINE. 3.5L V6 GAS ENGINE.
Description: X57/8 / x57/9]. [3 Pin. X62/72].
