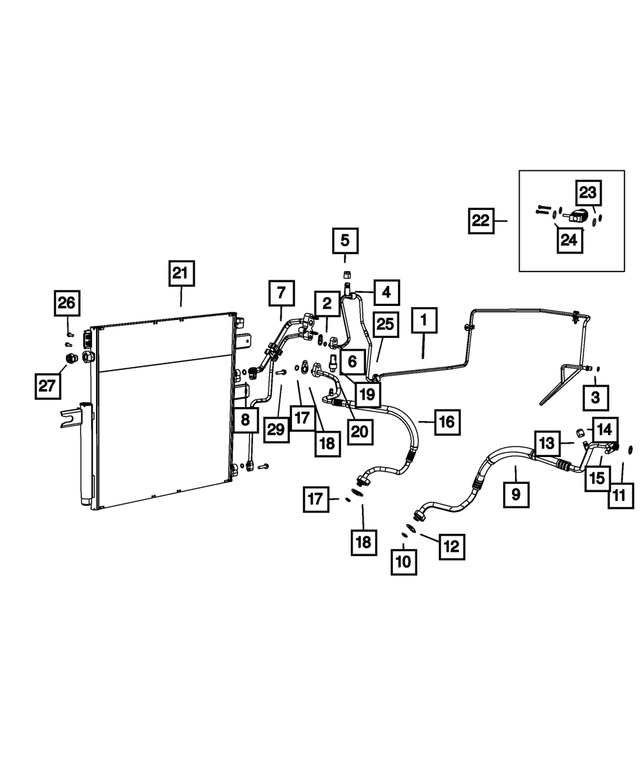

Air Conditioner and Heater Plumbing for 2017 Ram 3500

Diagram 1 1. Radiator To Condenser Bracket, Left Diagram 2 2. Radiator To Condenser Bracket, Left Diagram 3 3. Radiator To Condenser Bracket, Right Diagram 4 4. Connector Diagram 5 5. Connector Diagram 6 6. Connector Diagram 7 7. Hex Nut And Washer Diagram 8 8. Hex Nut And Washer Diagram 9 9. Hex Nut And Washer Diagram 10 10. Heater Hose Diagram 11 11. Heater Hose
Air Conditioner and Heater Plumbing for 2017 Ram 3500 #0
1
10
11
13
16
17
17
18
18
19
2
21
22
23
24
25
27
29
3
4
5
6
7
8
9
No.
Part # / Description / Price
Price
N/A
68227806AA - Air Conditioners and Heaters: Radiator To Condenser Bracket, Left for Mopar Image
Radiator To Condenser Bracket, Left
68227806AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
MSRP $106.00
$74.43
MSRP $106.00
$74.43
N/A
68227801AA - Air Conditioners and Heaters: Radiator To Condenser Bracket, Right for Mopar Image
Radiator To Condenser Bracket, Right
68227801AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: CONDENSER SUPPORT
View Details
View Details
1
68140668AC - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68140668AC
Mopar Mopar
Description: Includes: Gaskets, O-Rings, Valve Core, Cap.
View Details
View Details
1
68140657AC - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68140657AC
Mopar Mopar
Description: Includes: Gaskets, O-Rings, Valve Core, Cap.
MSRP $164.00
$116.91
MSRP $164.00
$116.91
2
68152002AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68152002AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. All Diesels Engines.
Description: 3/8". 8.6mm ID. Lhd only.
Not For Sale
Not For Sale
3
68100676AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100676AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: 10mm ID. 8.6mm id. Drier To Condenser. Drier End. Expansion Valve End. Liquid line to Drier. After 8/21/08. 3/8". Condensor end.
Not For Sale
Not For Sale
4
68237083AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68237083AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. All Diesels Engines.
Description: High Side.
Not For Sale
Not For Sale
5
68237081AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68237081AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE. All Diesels Engines.
Description: Up to 05/05/2013. Low Side.
Not For Sale
Not For Sale
6
6102440AA - Air Conditioners and Heaters: Hex Nut And Washer for Mopar Image
Hex Nut And Washer
6102440AA
Mopar Mopar
MSRP $11.30
$7.76
MSRP $11.30
$7.76
7
52014737AA - Air Conditioners and Heaters: A/c Condenser Line for Mopar Image
A/C Condenser Line
52014737AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Jumper. Includes: O-Rings.
MSRP $317.00
$226.08
MSRP $317.00
$226.08
8
68142219AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68142219AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: 1/2". 1/2 inch.
MSRP $30.65
$21.78
MSRP $30.65
$21.78
9
68140670AE - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68140670AE
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Includes: Gasket, O-Rings, Valve Core, Cap, Clips.
View Details
View Details
9
68140653AE - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68140653AE
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Includes: Gasket, O-Rings, Valve Core, Cap, Clips.
MSRP $234.00
$166.59
MSRP $234.00
$166.59
10
68100679AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100679AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: 5/8". Compressor End. Suction Line. At Compressor.
Not For Sale
Not For Sale
11
68100682AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100682AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Suction Line to Accumulator. Expansion Valve End. Accumulator End After 5/27/08. Drier End. At Expansion Valve. After 6-17-08. 3/4". Lhd only. Suction line to H-Valve.
Not For Sale
Not For Sale
13
5003862AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
5003862AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Core. Accumulator.
Not For Sale
Not For Sale
16
68228486AB - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
68228486AB
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Includes: Gaskets, O-Rings, Transducer, Valve Core.
MSRP $319.00
$224.89
MSRP $319.00
$224.89
17
5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
5183358AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
Not For Sale
Not For Sale
18
68100680AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100680AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: Slim Line. Round 1/2in. Discharge line to Compressor. Receiver Drier. Condenser End. 1/2".
Not For Sale
Not For Sale
19
68308727AA - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image
A/C Pressure Transducer Valve
68308727AA
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: 68308727aa. On Or After 06/28/2010. Includes: O-ring.
Not For Sale
Not For Sale
21
52014736AA - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image
Air Conditioning Condenser
52014736AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
MSRP $470.00
$334.36
MSRP $470.00
$334.36
22
68138269AB - Air Conditioners and Heaters: A/c Expansion Valve Kit for Mopar Image
A/C Expansion Valve Kit
68138269AB
Mopar Mopar
Description: Includes: O-Rings and Screws. Includes: Bolts, O-Rings. After 03/21/11.
MSRP $229.00
$160.64
MSRP $229.00
$160.64
23
5161806AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
5161806AA
Mopar Mopar
Description: 5/8 inch. 5/8 Up To 1-3-08. 5/8 After 1-3-08.
***SOLD INDIVIDUALLY***
MSRP $26.90
$18.98
MSRP $26.90
$18.98
24
68046015AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
68046015AA
Mopar Mopar
Description: 1/2".
MSRP $24.45
$17.25
MSRP $24.45
$17.25
25
56021384 - Air Conditioners and Heaters: Clip for Mopar Image
Clip, Liquid Line Attaching
56021384
Mopar Mopar
Notes: Engines: 6.4L V8 HEAVY DUTY HEMI ENGINE. 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: To GPEC Bracket. For Electrical Connector Repair Information Visit The Electrical Connector Website. Liquid Line to Wheelhouse. Liquid Line To Hydroform. Throttle Body. Shift Cable To Frame. Shift Cable To Starter. Canister Wiring. Liquid line to wheel house.
Not For Sale
Not For Sale
27
68069568AA - Air Conditioners and Heaters: Isolator Kit for Mopar Image
Isolator Kit
68069568AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE. Transmissions: 6-Spd Auto Aisin AS69RC HD Trans. 6-SPEED MANUAL G56 TRANSMISSION.
Description: Contains 2 Upper Bushings and 2 Lower Isolators.
MSRP $58.75
$41.88
MSRP $58.75
$41.88
29
68210900AA - Air Conditioners and Heaters: Hex Head Bolt for Mopar Image
Hex Head Bolt
68210900AA
Mopar Mopar
Notes: Engines: 6.7L I6 CUMMINS TURBO DIESEL ENGINE.
Description: M8x35. Jumper To Condenser Attaching.
View Details
View Details
