Air Conditioner and Heater Plumbing for 2019 Jeep Cherokee

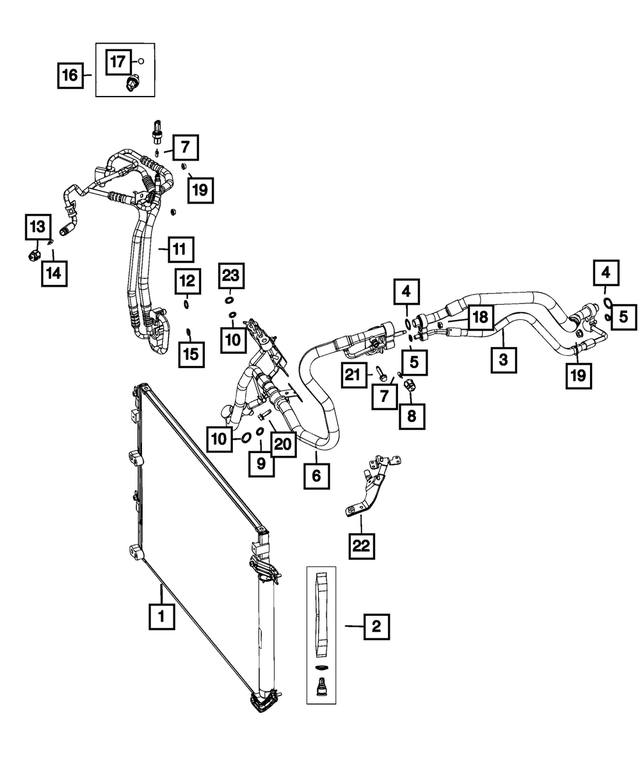

Diagram 1 1. Air Conditioning Condenser Diagram 2 2. Heater Supply Hose And Tube Diagram 3 3. Hex Flange Nut Diagram 4 4. Hex Nut Diagram 5 5. Hex Nut
Air Conditioner and Heater Plumbing for 2019 Jeep Cherokee #0
1
11
13
14
16
17
18
19
19
2
20
21
22
23
3
4
4
5
5
6
7
7
8
No.
Part # / Description / Price
Price
1
68399028AB - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image
Air Conditioning Condenser
68399028AB
Mopar Mopar
Notes: Engines: 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $404.00
$287.96
MSRP $404.00
$287.96
2
68399827AA - Air Conditioners and Heaters: A/c Filter Drier Filter Kit for MOPAR Image
A/C Receiver Drier / Desiccant Element Filter
68399827AA
MOPAR MOPAR
Notes: Engines: 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $35.40
$25.11
MSRP $35.40
$25.11
3
68288396AA - Air Conditioners and Heaters: A/c Suction And Liquid Line for Mopar Image
A/C Suction And Liquid Line
68288396AA
Mopar Mopar
Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $282.00
$197.52
MSRP $282.00
$197.52
4
68100682AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100682AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: Suction Line to Accumulator. Expansion Valve End. Accumulator End After 5/27/08. Drier End. At Expansion Valve. After 6-17-08. 3/4". Lhd only. Suction line to H-Valve.
Not For Sale
Not For Sale
5
68100681AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100681AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: 1/2".
Not For Sale
Not For Sale
6
68288395AB - Air Conditioners and Heaters: A/c Suction & Discharge Line for Mopar Image
A/C Suction & Discharge Line
68288395AB
Mopar Mopar
Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $395.00
$282.01
MSRP $395.00
$282.01
6
68288394AB - Air Conditioners and Heaters: A/c Suction & Discharge Line for Mopar Image
A/C Suction & Discharge Line
68288394AB
Mopar Mopar
Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $395.00
$278.44
MSRP $395.00
$278.44
7
68237075AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68237075AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: Low Side.
Not For Sale
Not For Sale
8
68237081AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68237081AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Description: Up to 05/05/2013. Low Side.
Not For Sale
Not For Sale
8
68237080AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68237080AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $28.25
$19.99
MSRP $28.25
$19.99
11
68288392AA - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68288392AA
Mopar Mopar
Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: Jumper.
MSRP $462.00
$326.03
MSRP $462.00
$326.03
11
68288393AA - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68288393AA
Mopar Mopar
Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: Jumper.
View Details
View Details
13
68295589AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68295589AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Not For Sale
Not For Sale
13
68406297AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
68406297AA
Mopar Mopar
Notes: Engines: 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
MSRP $16.75
$11.44
MSRP $16.75
$11.44
14
68237083AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
68237083AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: High Side.
Not For Sale
Not For Sale
16
68308727AA - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image
A/C Pressure Transducer Valve
68308727AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: 68308727aa. On Or After 06/28/2010. Includes: O-ring.
Not For Sale
Not For Sale
17
5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
5183358AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
Not For Sale
Not For Sale
18
5097674AA - Air Conditioners and Heaters: Hex Nut for Mopar Image
Hex Nut
5097674AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Not For Sale
Not For Sale
19
6104709AA - Air Conditioners and Heaters: Hex Flange Nut for Mopar Image
Hex Flange Nut
6104709AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Not For Sale
Not For Sale
19
6104716AA - Air Conditioners and Heaters: Hex Flange Nut for Mopar Image
Hex Flange Nut
6104716AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $4.20
$2.88
MSRP $4.20
$2.88
20
6105039AA - Air Conditioners and Heaters: Hex Flange Head Bolt for Mopar Image
Hex Flange Head Bolt
6105039AA
Mopar Mopar
Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
MSRP $5.50
$3.68
MSRP $5.50
$3.68
21
6105037AA - Air Conditioners and Heaters: Hex Flange Head Screw for Mopar Image
Hex Flange Head Screw
6105037AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS.
Not For Sale
Not For Sale
22
68209588AB - Air Conditioners and Heaters: A/c Line Bracket for Mopar Image
A/C Line Bracket
68209588AB
Mopar Mopar
Notes: Engines: 3.2L V6 24V VVT ENGINE W/ESS.
Description: A/C Lines and Wiring.
MSRP $13.95
$9.55
MSRP $13.95
$9.55
23
68152002AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68152002AA
Mopar Mopar
Notes: Engines: 2.0L I4 DOHC DI Turbo Engine w/ ESS. 2.2L I4 TURBO DIESEL ENGINE W/ ESS. 2.4L I4 MULTIAIR ENGINE W/ ESS. 2.4L I4 ZERO EVAP M-AIR ENGINE W/ESS. 3.2L V6 24V VVT ENGINE W/ESS. Transmissions: 9-SPD 948TE 4WD AUTO TRANS (MAKE). 9-Spd 948TE FWD/AWD Auto Trans (Make.
Description: 3/8". 8.6mm ID. Lhd only.
Not For Sale
Not For Sale
