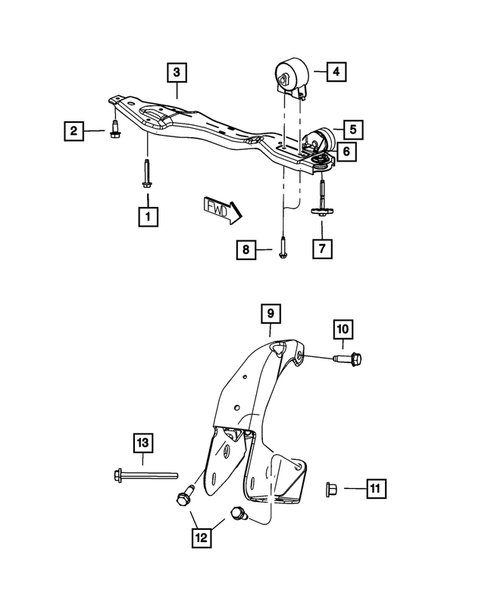

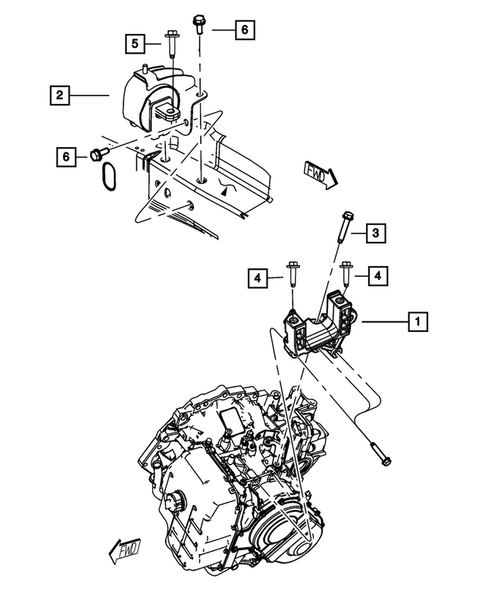

Engine Mounting for 2009 Chrysler Town & Country
No.
Part # / Description / Price
Price
1
Hex Head Bolt And Coned Washer, Mounting
Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: M10x1.5x65.00. M10x1.50x65.00. Bracket To Engine/Transmission. Front Engine Support To Cradle Middle Location [M10x1.5x65.0]. Pim to case. Middle Support To Crossmember. Engine Mount To Engine Timing Cover. Engine Mount Support Bracket To Cylinder Block. Tensioner to front cover.
Not For Sale
Not For Sale
2
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
MSRP $5.65
$3.80
MSRP $5.65
$3.80
4
Engine Mount Support Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: ENGINE SUPPORT
Not For Sale
Not For Sale
7
MSRP $113.00
$79.84
8
Hex Flange Head Bolt, Mounting Mopar
Mopar Description: Front Torque Support To Crossmember. M10x1.50x50. Front Engine Mount To Engine Member Restraint Assembly. Trailing Arm to Knuckle. Front Engine Mount To Engine Support Crossmember. Front Torque Strut To Crossmember. To Engine Support Module.
Not For Sale
Not For Sale
10
Hex Head Bolt Mopar
Mopar Description: M12-1.75x60. Front Engine Bracket To Cylinder Block. Cylinder Block to Transmission.
12
Not For Sale
No.
Part # / Description / Price
Price
2
Transmission Support Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Engine Mount.
MSRP $315.00
$221.32
MSRP $315.00
$221.32
3
Hex Flange Head Bolt, Mounting Left Side Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Hub Bearing to Knuckle. Top Of Left Transmission Bracket To Transmission [M10x1.50x40.00]. Left Cast Bracket To Transmission. Side Rail Bracket Attaching. Intermediate shaft brkt to eng blk. M10x1.50x40.00. [SHA,SHG] Stabilizer Bar Bushing Retainer to Frame. M10x40. Rr sta bar assy to frame.
Not For Sale
Not For Sale
4
Hex Flange Head Bolt, Mounting Left Side Mopar
Mopar Notes: Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
MSRP $3.80
$2.59
MSRP $3.80
$2.59
5
Hex Head Bolt, Mounting Mopar
Mopar Description: Rr sta bar assy to frame. M12x1.50x55.00.
MSRP $6.20
$4.14
MSRP $6.20
$4.14
6
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
MSRP $5.65
$3.80
MSRP $5.65
$3.80
No.
Part # / Description / Price
Price
3
Hex Head Screw Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: M12x1.75x50. Transaxle To Engine. Clutch Housing to Block Upper. Transmission to Engine. Transmission Housing to Block Upper.
MSRP $14.25
$9.83
MSRP $14.25
$9.83
4
Hex Head Bolt And Coned Washer, Mounting Mopar
Mopar Description: M10x1.50x125. Bracket to Rail.
MSRP $9.15
$6.21
MSRP $9.15
$6.21
5
Hex Flange Head Bolt, Mounting Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
MSRP $5.65
$3.80
MSRP $5.65
$3.80
No.
Part # / Description / Price
Price
