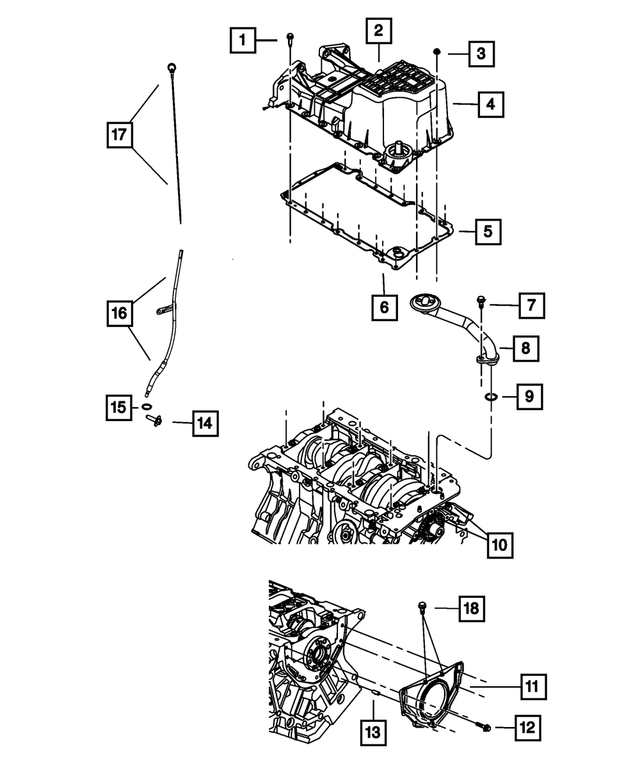

Engine Oiling, Oil Pan and Indicator (Dipstick) for 2009 Chrysler Town & Country
No.
Part # / Description / Price
Price
1
Hex Flange Head Bolt
Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: ***SOLD INDIVIDUALLY***
Not For Sale
Not For Sale
2
Oil Drain Plug Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: 170 hp. With Gasket. For 05184513AC Oil Pan. Use 10-23-02 And After. Use 10-28-02 And After. [M14x1.50x21.50].
Not For Sale
Not For Sale
3
Hex Flange Nut Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Not For Sale
Not For Sale
4

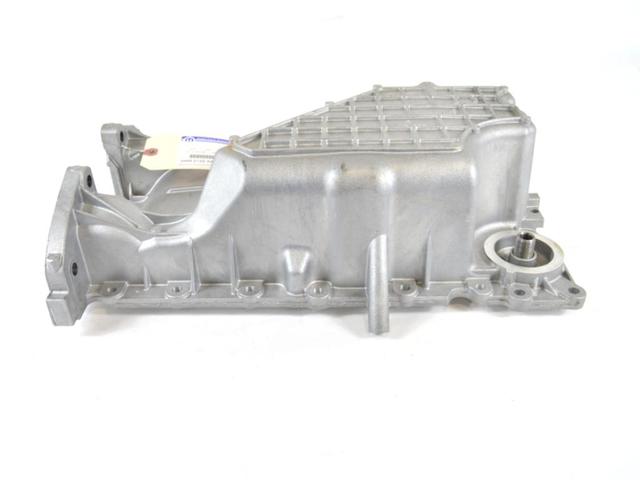

Oil Pan Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Refer To Illustration 105 For Julian Date Code Information. Used On Engines Built On 1408 05/19/08 And After.
MSRP $482.00
$339.12
MSRP $482.00
$339.12
4
Oil Pan Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Refer To Illustration 105 For Julian Date Code Information. Used On Engines Built On 1398 05/18/08 And Before.
5
MSRP $88.45
$62.95
7
Hex Head Screw And Washer Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: M8x1.25x25.25. Oil Pickup Tube To Oil Pump. M8x1.25x25.00. Engine Oil Pick Up Tube To Engine Oil Pump. Oil Pickup Tube To Chain Case Cover.
MSRP $11.00
$7.53
MSRP $11.00
$7.53
10
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8x1.25x35.00. [M8x1.25x42.0]. Oil Pump Back Cover To Oil Pump Body. M8x1.25x42.00. Oil Pick Up Tube. Oil Pump To Pan.
11
Crankshaft Rear Oil Retainer And Seal Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Assembly with Seal and Gasket. Includes Rear Main Oil seal. See note. After build date TDDE92373XXXXX, One Piece Assembly.
12
Torx Head Bolt, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M6x1.00x17.00. Rear Crankshaft Oil Seal Retainer To Cylinder Block. [M6x1.0x17.0].
***SOLD INDIVIDUALLY***
***SOLD INDIVIDUALLY***
13
Dowel Pin Mopar
Mopar Notes: Engines: 2.8L I4 TURBO DIESEL ENGINE. 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE. Transmissions: 4-SPEED AUTOMATIC VLP TRANSMISSION. 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Not For Sale
Not For Sale
16

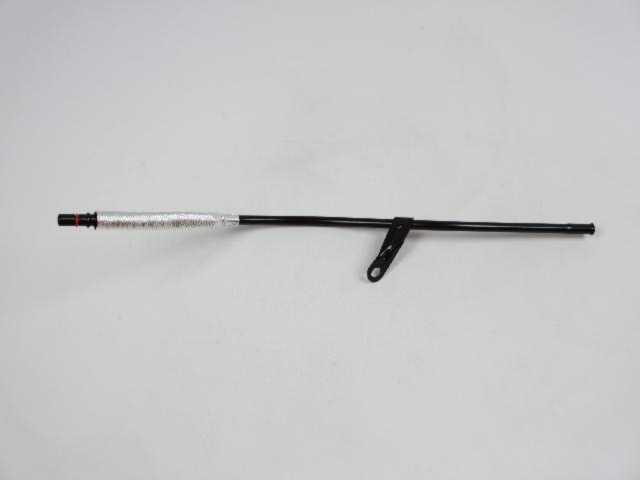

Engine Oil Indicator Tube Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Includes O-Ring.
MSRP $67.15
$47.66
MSRP $67.15
$47.66
17
MSRP $34.75
$24.51
18
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Oil Pan To Rear Retainer. [M6x1.0x23.0]. M6x1.00x23.00.
No.
Part # / Description / Price
Price
2
Oil Pump Gasket Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Build Date Codes Are listed On Intake Plenum Tag. Up To And Including Build Date TDDE92363XXXXX.
MSRP $20.60
$14.52
MSRP $20.60
$14.52
3

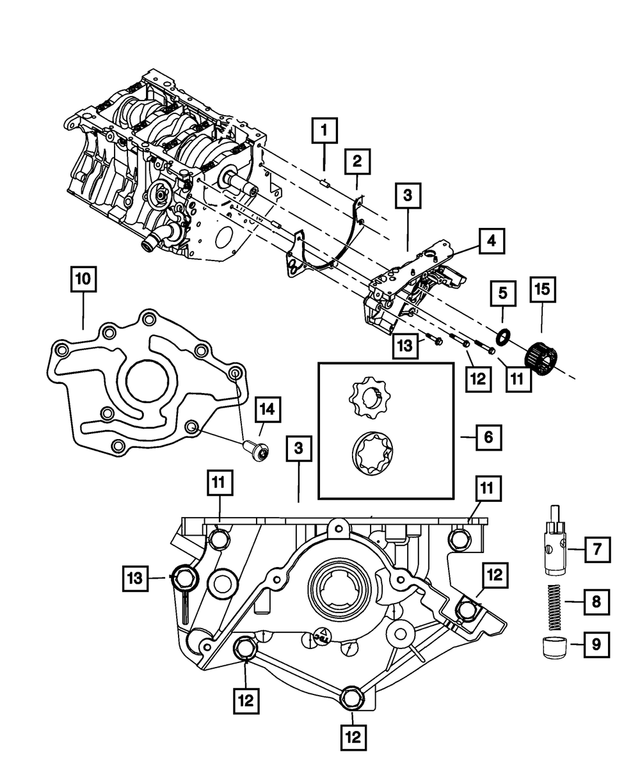

Engine Oil Pump Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Includes Items 10,11,12,13,14,15. Includes Rotor Set, Plunger, Spring, Cap, Back Cover And Body. Complete Pump.
4
Double Ended Stud, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M8x1.25x35.00. [M8x1.25x42.0]. Oil Pump Back Cover To Oil Pump Body. M8x1.25x42.00. Oil Pick Up Tube. Oil Pump To Pan.
5
Front Main Crankshaft Seal Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Front.
MSRP $26.25
$18.74
MSRP $26.25
$18.74
7
MSRP $19.40
$13.68
11
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Oil Pump Body To Cylinder Block. M8x1.25x55.00. Intake Manifold To Cylinder Head. Fuel Rail to Intake Manifold.
12
Not For Sale
13
Hex Head Bolt And Washer, Mounting Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M10x1.50x70. Oil Pump Body To Cylinder Block.
14
Torx Head Screw, Mounting Mopar
Mopar Notes: Engines: 3.3L V6 OHV ENGINE. 3.8L V6 OHV ENGINE. 4.0L V6 SOHC ENGINE.
Description: Oil Pump Cover To Timing Case Cover. Oil Pump Back Cover To Oil Pump Body. [M6x1.0x15.0]. Oil Pump Cover To Timing Cove[M6x1.00x15.00]. Oil Pump Cover Plate To Chain Case Cover. Oil Pump Cover To Cylinder Block.
MOPAR NO LONGER SUPPLIES THIS PART MOPAR NO LONGER SUPPLIES THIS PART
MOPAR NO LONGER SUPPLIES THIS PART MOPAR NO LONGER SUPPLIES THIS PART
No.
Part # / Description / Price
Price
1
Engine Oil Filter Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: 74. 07/01/2013 And After. Mopar. [22mm]. See Note. Without Scat Pack Performance Package For Production Date 10/15/2014 And After. Small Oil Filter Is Used Due To Clearance Issues With Radiator Hose.
Not For Sale
Not For Sale
2
Oil Filter Connector Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: M22x1.50. Mounts On Oil Pan. See Note. [22mm].
MSRP $24.65
$17.49
MSRP $24.65
$17.49
5
Not For Sale
6
MSRP $29.25
$20.88
7
10w30 Engine Oil Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Quart. 1 Quart Bottle (32 Fluid Ounces) Minimum Ship Quantity Of 12 Quarts. Quart. [32 Fluid Ounces] Minimum Ship Quanity Of 12. MS-6395 [API SM ILSAC GF-4]. [32 Fluid Ounces] Minimum Ship Quanity Of 12.
7
10w30 Engine Oil 2 Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Quart. 1 Quart Bottle (32 Fluid Ounces) Minimum Ship Quantity Of 12 Quarts. Quart. [32 Fluid Ounces] Minimum Ship Quanity Of 12. MS-6395 [API SM ILSAC GF-4]. [32 Fluid Ounces] Minimum Ship Quanity Of 12.
Not For Sale
Not For Sale
8
10w30 Engine Oil Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Gallon. 1 Gallon Bottle Minimum Ship Quantity Of 4 Bottles. Gallon. [128 Fluid Ounces] Minimum Ship Quanity Of 4. MS-6395 [API SM ILSAC GF-4]. [128 Fluid Ounces] Minimum Ship Quanity Of 3.
8
Engine Oil 2 Mopar
Mopar Notes: Engines: 4.0L V6 SOHC ENGINE.
Description: Gallon. 1 Gallon Bottle Minimum Ship Quantity Of 4 Bottles. Gallon. [128 Fluid Ounces] Minimum Ship Quanity Of 4. MS-6395 [API SM ILSAC GF-4]. [128 Fluid Ounces] Minimum Ship Quanity Of 3.
MSRP $41.67
$29.75
MSRP $41.67
$29.75
2 This part contains hazardous materials. Extra shipping costs apply.
